Pure Pursuit — Formula Trinity AI Control

Pure Pursuit is a geometric path-tracking algorithm used in autonomous vehicles to compute the steering angle needed to follow a predefined path of waypoints.

It belongs to the Control Layer of the Formula Trinity stack, taking in where the car is (pose) and where it should go (raceline), and outputting steering commands.

By constantly looking ahead a distance \( l_d \) (the lookahead distance) on the raceline, the algorithm identifies a goal point — where the raceline intersects a circle of radius \( l_d \) centered on the car.
By steering toward this point, the car naturally follows the path in smooth arcs.

The Pure Pursuit Loop

1. Read State

From /pose:
Extract car_x, car_y, and car_yaw.
car_yaw is computed from the quaternion using a quaternion-to-angle helper function.

2. Pick Waypoints Around the Lookahead Circle

  1. Compute the distance from the car to each race-line waypoint.
  2. Find:
  3. The nearest waypoint (inside the lookahead circle), and
  4. The next waypoint just outside the lookahead radius \( l_d \).
  5. These two points define a line that crosses your lookahead circle.

3. Find Circle–Line Intersections

  • The line through those two waypoints is intersected with the lookahead circle centered on the car.
  • Two intersection points result — pick the one closer to the outside waypoint.
    This point becomes the goal point.

4. Turn Toward the Goal

Compute the heading error \( \alpha \):

\[ \alpha = \text{angle between the car's heading and the vector from car → goal.} \]

The Pure Pursuit steering formula:

\[ \delta = \tan^{-1}\!\left(\frac{2L\sin(\alpha)}{l_d}\right) \]

where: - \( \delta \): steering angle
- \( L \): wheelbase (distance between front and rear axles)
- \( \alpha \): heading error
- \( l_d \): lookahead distance

5. (C++ Only) Grip-Aware Helpers — Beta, Gamma, Tau, and LAP

The C++ implementation adds an extra layer: - Estimates path curvature. - Mixes parameters: - Gamma (γ) — how far off the path the car is. - Beta (β) — curvature gap. - Nudges the goal point to a Look-Ahead Point (LAP) and recomputes steering toward it.

This results in smoother path-following — think “Pure Pursuit + correction for curvature/offset.”

6. Decide Acceleration

  • If safety or mission control signals stop/crawl/target velocity/accel — those override.
  • Otherwise:
  • Compute a target velocity (rule-based in C++, nominal in Python).
  • Use a P/PI/PID control to move the actual velocity toward it.
  • Clamp acceleration by max_accel.

(Python uses proportional-only control; C++ includes a full PID scaffold.)

7. Publish Results

  • Send /cmd (AckermannDriveStamped) with steering angle and acceleration.
  • Update /distance by integrating velocity over time.
  • Publish visualization topics for steering and goal point markers.

Mathematical Summary

Let:

Symbol Meaning
\( (x, y) \) Current car position
\( \theta \) Current car heading (yaw)
\( L \) Wheelbase (distance between axles)
\( l_d \) Lookahead distance
\( \alpha \) Angle between car heading and line to goal point
\( \delta \) Steering angle

Then the steering angle is given by:

\[ \delta = \tan^{-1}\!\left(\frac{2L\sin(\alpha)}{l_d}\right) \]

Step-by-Step Mathematical Process

1. Find Intersection

Compute the distance between the car and all nearby waypoints:

\[ d^2 = (w_x - x_{\text{car}})^2 + (w_y - y_{\text{car}})^2 \]

where \( \vec{w} = (w_x, w_y) \) are path waypoints.

Then:

\[ d_c = \sqrt{d^2} - l_d \]

Find the index of the smallest value in \( d_c \):

\[ \text{index} = \operatorname*{argmin}(d_c) \]

The waypoint with the smallest \( d_c \) is closest to the lookahead circle circumference.

2. Find the Angle \( \alpha \)

\[ \alpha = \tan^{-1}\!\left(\frac{y_{\text{goal}} - y_{\text{car}}}{x_{\text{goal}} - x_{\text{car}}}\right) \]

If \( \alpha < 0 \):

\[ \alpha = \pi - \alpha \]

Adjust for the car’s yaw:

\[ \alpha = \alpha - \gamma \]

Then compute steering:

\[ \theta = \tan^{-1}\!\left(\frac{2L\sin(\alpha)}{l_d}\right) \]

Visualization

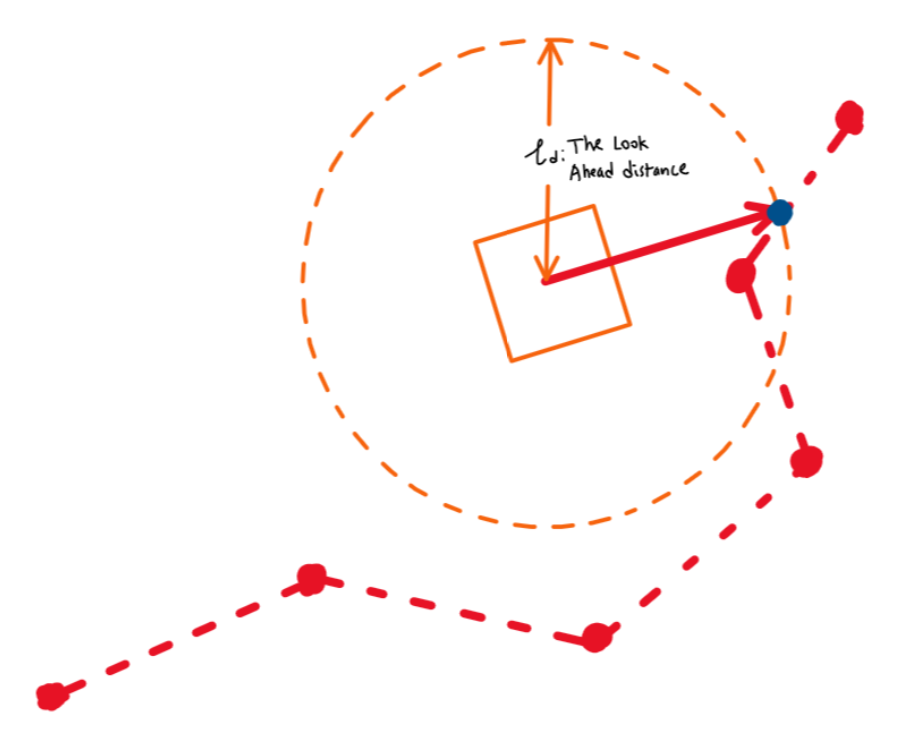

Pure Pursuit Concept

Figure 1: The car follows the raceline by targeting a point on the lookahead circle.

Glossary

Term Description
Ackermann Car-like steering (front wheels turn), so we command steering angle and acceleration.
Lookahead (ld) Circle radius centered on the car; the raceline’s intersection defines the goal point. Larger \( l_d \) = smoother turns.
Alpha (α) Heading error between where the car points and where the goal point is.
LAP / Beta / Gamma (C++) Add-ons to account for curvature and path offset, improving smoothness.

References

Pure Pursuit is an automatic steering control system — the car continuously turns to follow a smooth trajectory along the given path.
